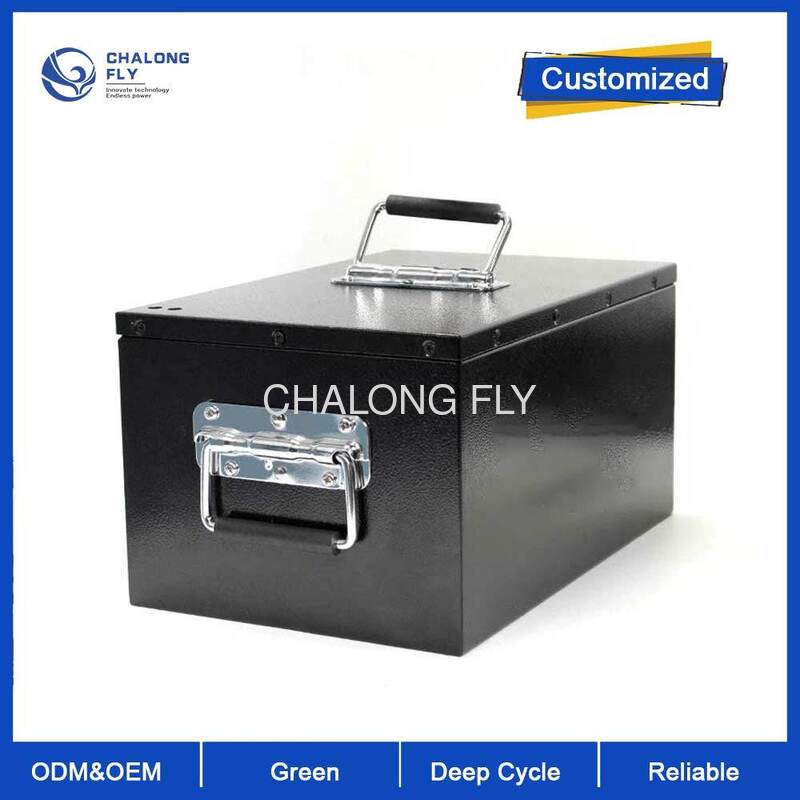

72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance
72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance
接触

72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance

最小注文数量 : 2ユニット 価格 : 交渉可能
パッケージの詳細 : 木製のケースとカートンケース 受渡し時間 : 7～15営業日
支払条件 : T/T 供給の能力 : 1か月あたり10000ユニット
起源の場所: 中国湖南 ブランド名: Chalong Fly
証明: CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc モデル番号: CLFLE218

詳細情報
電池のタイプ：: lifepo4 バッテリー 電圧：: 48V
容量：: 200Ah サイズ：: カスタマイズされた
OEM/ODM：: はい 交通パッケージ：: 泡及び合板の箱
防水基準:: IP67 HSコード:: 8507600090
特徴：: 費用対効果,迅速な配達,安定した構造 応用：: 電気自動車、電気ボート、電気ヨット、海兵隊員
ハイライト:

72V 170Ah Electric Motorcycle Battery

,

IP67 Waterproof LiFePO4 Battery Pack

,

4000 Cycles OEM Battery Pack

製品の説明


72V 170Ah Electric Motorcycle Battery – Maximum Range & Heavy-Duty Performance
72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance 0 The ultimate power solution for electric motorcycles, trikes, and heavy-duty two-wheelers. With a massive 12.24 kWh energy capacity, this battery is engineered for riders who demand maximum range, consistent power delivery, and uncompromising reliability. Whether you're tackling long-distance touring, daily cargo delivery, or off-road adventures, this battery keeps you moving.
Technical Specifications
Specification Details
Nominal Voltage 72V
Nominal Capacity 170Ah
Total Energy 12.24 kWh
Cell Chemistry Lithium Iron Phosphate (LiFePO₄)
Cell Configuration 24S1P (24 cells in series)
Cell Origin Automotive Grade A, sourced from Tier-1 suppliers (e.g., BYD, Gotion)
Cycle Life ≥ 4000 cycles @ 80% DoD, 1C rate
Max Continuous Discharge 200A
Peak Discharge (10 sec) 400A
Recommended Charge Current 30A (0.18C)
Max Charge Current 85A (0.5C)
Charge Cut-off Voltage 86.4V ± 0.5V
Discharge Cut-off Voltage 60V ± 0.5V (under load)
BMS Type Smart 250A BMS with CAN bus & Bluetooth
BMS Protection Over-voltage, under-voltage, over-current, short circuit, temperature
Cell Balancing Active balancing (optional)
Communication Protocol CAN 2.0, RS485, UART
Dimensions (L × W × H) 580 × 290 × 255 mm
Weight Approx. 85 kg
Enclosure Material Steel plate with electrostatic painting
Ingress Protection IP65 (dust-tight, water-resistant)
Terminal Type Dual Anderson SB175 connectors
Charge Temperature Range 0°C to 50°C
Discharge Temperature Range -20°C to 60°C
Storage Temperature -10°C to 35°C (recommended)
Certifications UN38.3, CE, FCC, RoHS

Application Scenarios & Compatibility

 Compatible Vehicle Types

  • Heavy electric motorcycles (e.g., Zero SR/F, LiveWire One – with custom battery tray)

  • Electric trikes and cargo bikes (for delivery fleets)

  • Custom-built high-performance scooters (with aftermarket controllers)

  • Electric off-road bikes and enduros72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance 1

72V 170Ah LiFePO4 Electric Motorcycle Battery with IP67 Waterproof and 4000 Cycles for Heavy-Duty Performance 2
Frequently Asked Questions
What is the actual range of this 72V 170Ah lithium battery?
The actual range is 120-150km, depending on motor power (1500-2000W), vehicle load, road conditions and driving habits; flat road with light load can reach the upper limit of range.
How long does it take to fully charge the 72V 170Ah battery?
Standard 8A charger: 6-8 hours full charge; 1.5C fast charger: 3-4 hours full charge, fast charge mode does not damage the battery.
Can this battery directly replace 72V lead-acid battery?
Yes, it is a direct upgrade replacement for 72V lead-acid batteries, same voltage interface, plug-and-play, no circuit modification required.
What is the warranty policy of this battery?
We provide 3-year or 1500-cycle warranty (whichever comes first), covering quality defects (non-human damage).
Is this 72V 170Ah battery waterproof for rainy days?
It has IP67 waterproof grade, can be used normally in rainy days, resist daily splashing and light immersion, but do not soak in water for a long time.
What is the difference between LiFePO4 and lead-acid batteries?
  • LiFePO4 battery has lighter weight (45% lighter)
  • Longer cycle life (5-8 times)
  • Faster charging
  • Higher safety
  • Zero maintenance
  • Better overall performance than lead-acid batteries
Can this battery be used in cold winter?
Yes, it supports normal discharge at -20℃, with small capacity attenuation, suitable for cold regions; it is recommended to charge in room temperature environment in extreme cold.
