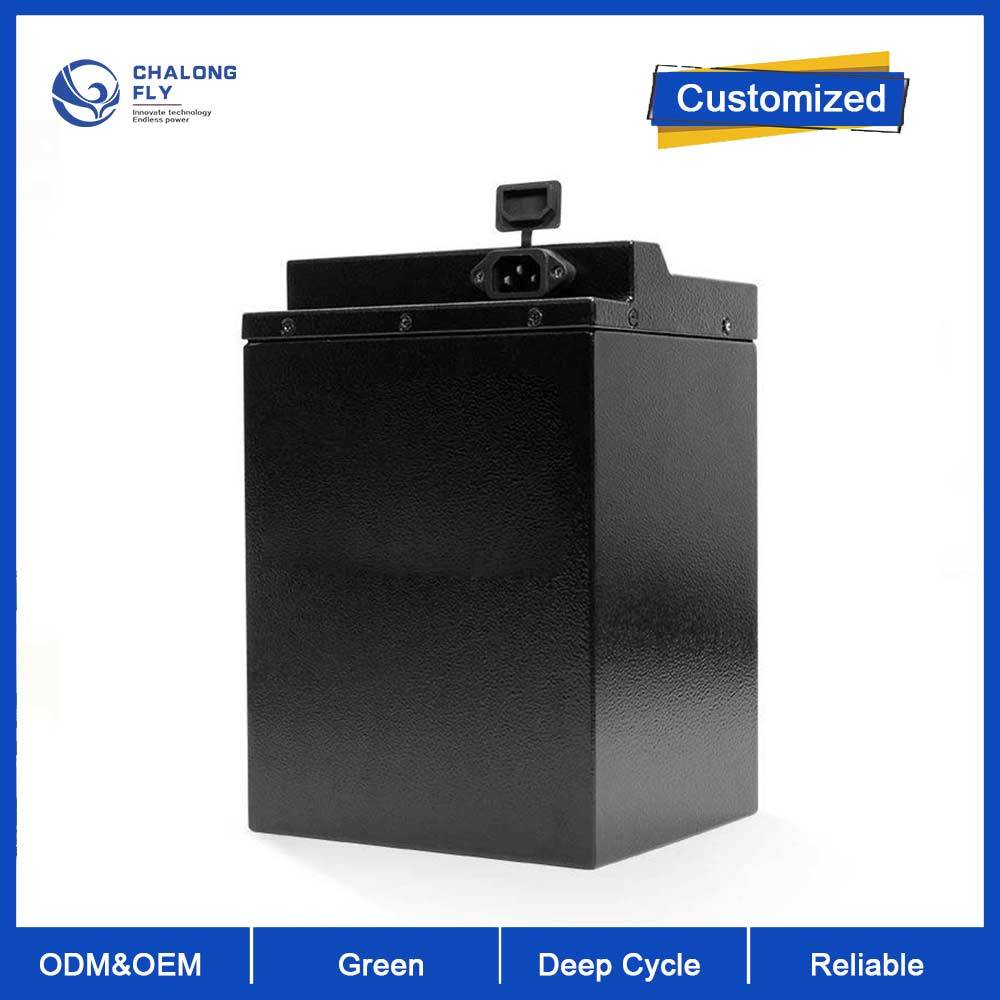

CLF OEM LiFePO4 EV リチウムバッテリーパック 96V 120V 360V 100ah 200Ah 高圧バッテリーパック 低速車両トラック
担当者 : Rosa Liu
電話番号 : +86 18975107916
WhatsAPPについて : +8618975107916
| 最小注文数量 : | 2ユニット | 価格 : | 交渉可能 |
|---|---|---|---|
| パッケージの詳細 : | 木製のケースとカートンケース | 受渡し時間 : | 7～15営業日 |
| 支払条件 : | T/T | 供給の能力 : | 1か月あたり10000ユニット |
| 起源の場所: | 中国湖南 | ブランド名: | Chalong Fly |
|---|---|---|---|
| 証明: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | モデル番号: | CLFLE218 |
|
詳細情報 |
|||
| 電池のタイプ：: | lifepo4 バッテリー | 電圧：: | 48V |
|---|---|---|---|
| 容量：: | 200Ah | サイズ：: | カスタマイズされた |
| OEM/ODM：: | はい | 交通パッケージ：: | 泡及び合板の箱 |
| 防水基準:: | IP67 | HSコード:: | 8507600090 |
| 特徴：: | 費用対効果,迅速な配達,安定した構造 | 応用：: | 電気自動車、電気ボート、電気ヨット、海兵隊員 |
製品の説明
Upgrade your electric scooter or motorcycle with our 72V 130Ah lithium battery pack. Designed for high-performance two-wheelers, this battery delivers exceptional range, reliable power output, and long cycle life. Whether you are a daily commuter or a performance enthusiast, this battery ensures you ride further and faster with peace of mind.
| Specification | Details |
|---|---|
| Nominal Voltage | 72V |
| Nominal Capacity | 130Ah |
| Energy | 9.36 kWh |
| Cell Type | Prismatic Lithium Iron Phosphate (LiFePO₄) |
| Cell Grade | Grade A, brand new automotive-grade cells |
| Cycle Life | > 3500 cycles (at 80% DOD, 1C rate) |
| Max Continuous Discharge Current | 150A |
| Peak Discharge Current | 300A (for 10 seconds) |
| Recommended Charge Current | 20A (0.15C) |
| Max Charge Current | 50A (0.38C) |
| Charge Cut-off Voltage | 86.4V ± 0.2V |
| Discharge Cut-off Voltage | 60V ± 0.2V (under load) |
| BMS (Battery Management System) | Smart 200A BMS with Bluetooth monitoring |
| Protection Functions | Overcharge, over-discharge, over-current, short circuit, over-temperature |
| Balancing | Passive balancing (≥50mA) |
| Communication | CAN / RS485 (optional) |
| Dimensions (L * W * H) | 565 * 276 * 240 mm |
| Weight | Approximately 68 kg |
| Enclosure Material | Aluminum alloy with powder coating |
| Ingress Protection | IP67 (waterproof and dustproof) |
| Terminal Type | Anderson 175A connector |
| Operating Temperature (Charge) | 0°C ~ 55°C |
| Operating Temperature (Discharge) | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 35°C |
| Certifications | UN38.3, MSDS, CE, RoHS |
We use Grade A prismatic lithium iron phosphate cells sourced from top manufacturers (e.g., CATL, EVE). These cells offer excellent thermal stability, safety, and a lifespan of over 3500 cycles – nearly 10 years of daily use.
The battery case is sealed to IP67 standards, meaning it can withstand immersion in 1 meter of water for 30 minutes. Ride confidently in rain or through puddles.
The enclosure is made of high-strength aluminum alloy with anti-corrosion coating, ensuring resistance to vibration and impact – ideal for rough road conditions.
