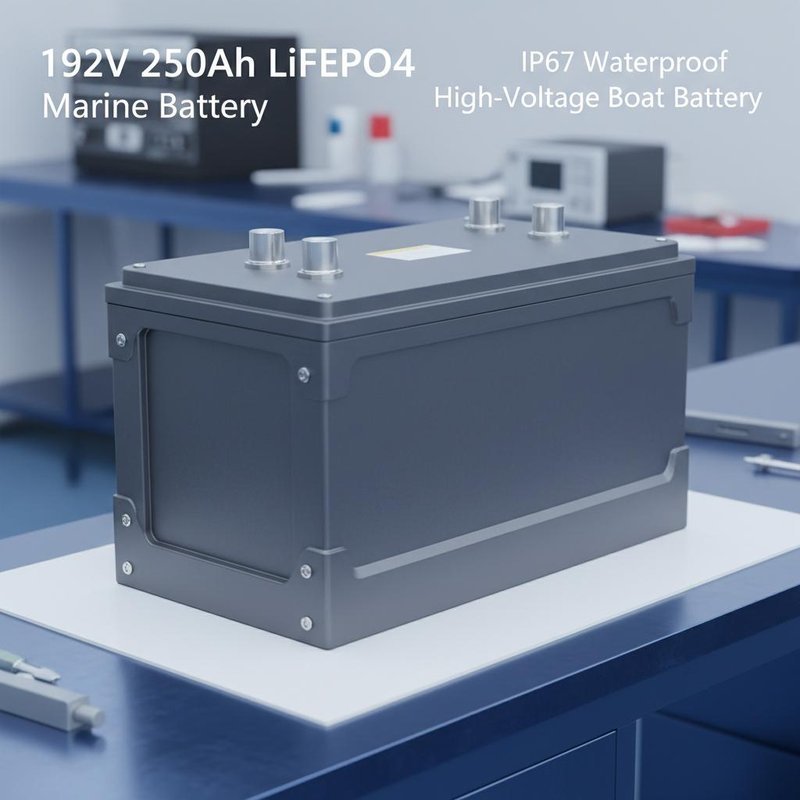

192V 250Ah LiFePO4 Marine Battery | IP67 Waterproof High-Voltage Boat Battery
This 192V 250Ah LiFePO4 marine battery is a high-voltage power solution specifically engineered for large yachts, electric vessels, fishing boats, work boats, and marine propulsion systems. Featuring IP67 waterproof rating, salt-fog resistance, smart BMS technology, extended cycle life, and maintenance-free design, it delivers stable, safe, and efficient power for demanding marine applications.
Key Features
- IP67 Waterproof & Salt-Fog Resistance: Complete protection against water, dust, corrosion, and vibration for harsh marine environments
- High Safety LiFePO4 Chemistry: Superior thermal stability, non-flammable, and non-explosive for maximum safety
- Smart BMS Full Protection: Built-in Battery Management System with comprehensive protection including over-charge, over-discharge, over-current, short-circuit, temperature monitoring, and cell balancing
- Ultra Long Cycle Life: ≥4000 cycles at 80% depth of discharge, providing 5-8 times longer lifespan than traditional batteries
- Fast Charging & High Efficiency: Supports high-rate fast charging to significantly reduce charging time and improve operational efficiency
- Lightweight & High Energy Density: Optimized weight-to-power ratio that improves vessel range and performance
- Wide Temperature Adaptation: Stable operation from -20℃ to 60℃, suitable for global marine climate conditions
Technical Specifications
| Specification | Details |
|---|
| Model | 192V 250Ah LiFePO4 Marine Battery |
| Nominal Voltage | 192V |
| Nominal Capacity | 250Ah |
| Energy | 48000Wh (48kWh) |
| Cell Type | LiFePO4 |
| Charge Voltage | 201.6V |
| Discharge Cut-off Voltage | 168V |
| Standard Charge Current | 50A |
| Max Charge Current | 250A (1C) |
| Standard Discharge Current | 125A (0.5C) |
| Max Discharge Current | 250A (1C) |
| Cycle Life | ≥4000 cycles @ 80% DOD |
| Operating Temp (Charge) | 0~55℃ |
| Operating Temp (Discharge) | -20~60℃ |
| Protection Grade | IP67 |
| Communication | CAN / RS485 (Optional) |
| Dimension (L×W×H) | Custom |
| Weight | Custom |
| Certifications | CE, FCC, RoHS, UN38.3, MSDS |
Applications
- Large Yachts & Luxury Boats
- Electric Fishing Boats
- High-Voltage Electric Vessels
- Marine Propulsion Systems
- Work Boats & Service Vessels
- Marine & Offshore Power Supply
Frequently Asked Questions
Can this battery be used for all types of bait boats?
Yes, compatible with most bait boats on the market. We offer multiple voltage (36V, 48V, 72V, 144V) and capacity (100Ah, 200Ah, 600Ah) options, plus customized solutions for specific power requirements.
What is the service life of this marine lithium battery?
Under normal use (80% DOD), cycle life reaches 8000 cycles with service life of 8-10 years, significantly longer than traditional lead-acid batteries (1-2 years). Built-in BMS extends battery life.
Is the battery waterproof? Can it be used in saltwater environments?
Yes, featuring IP65/IP67 waterproof and dustproof enclosures fully resistant to saltwater corrosion, humidity, and splashing. Specifically designed for marine environments in both saltwater and freshwater applications.
What is the function of the built-in BMS?
The Battery Management System acts as the battery's "brain," monitoring voltage, current, temperature, and SOC in real-time. It provides automatic circuit protection against overcharge, over-discharge, over-current, and short-circuit conditions while balancing cell voltages to ensure safe operation.
How long does it take to fully charge the battery?
Charging time depends on battery capacity and charger power. Typically 2-4 hours for 100Ah/200Ah batteries and 6-8 hours for 600Ah batteries. We recommend using dedicated lithium battery chargers for optimal performance.
Can multiple batteries be connected in series or parallel?
Yes, our batteries support series and parallel connections. Connect multiple batteries in series to increase voltage or in parallel to increase capacity for higher power requirements in large marine vessels. We recommend using identical models and capacities for connection.
Why Choose Our Marine Lithium Batteries
Your reliable partner for marine power solutions. We adhere to strict quality control standards with international certifications, provide 5-year warranty coverage, and offer professional after-sales service. Whether you're a personal angler or marine equipment manufacturer, we deliver high-quality, cost-effective marine lithium battery solutions. Contact us today for customized quotes!
